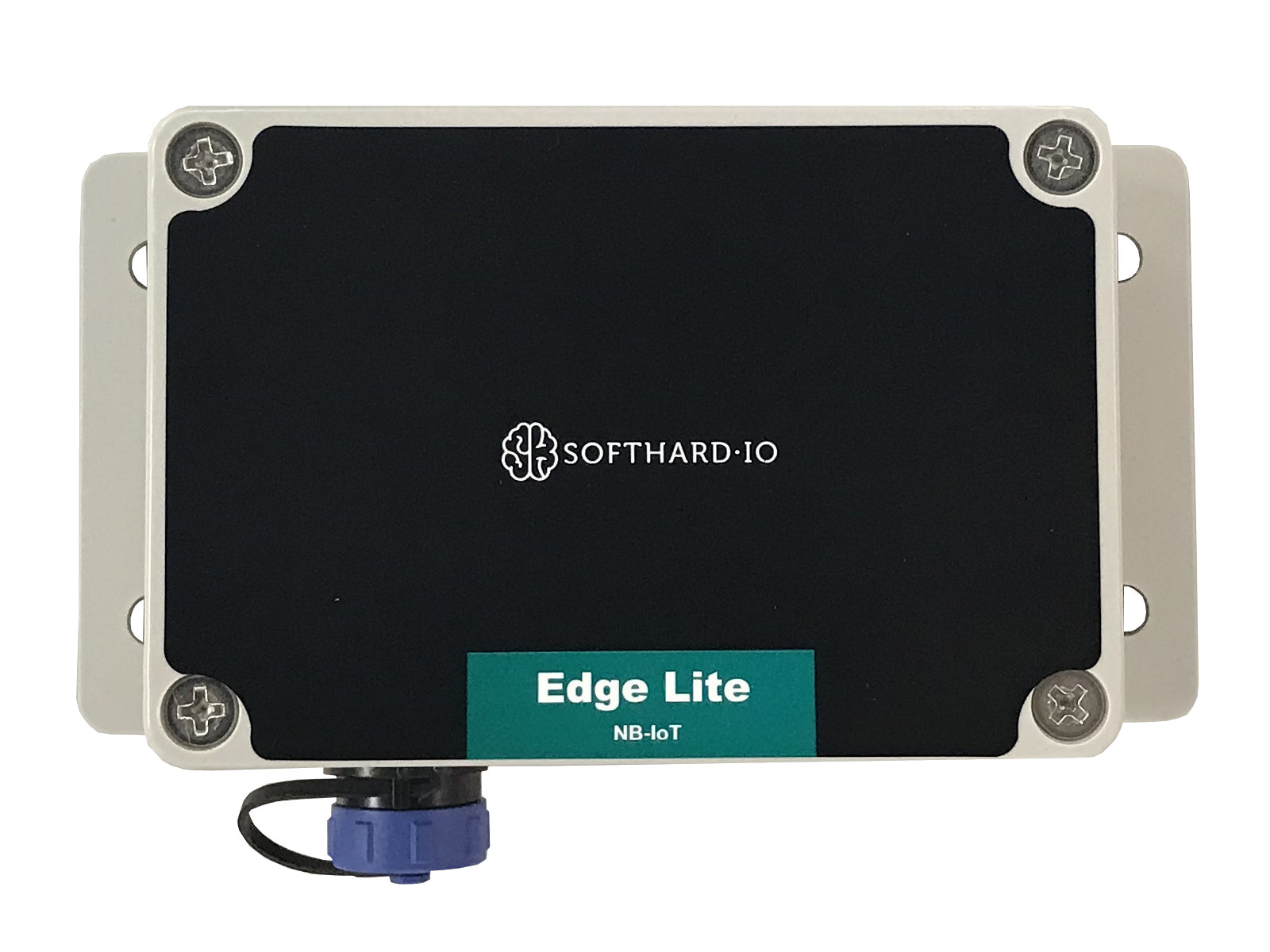

Edge Lite

Edge Lite

Edge Lite is designed for remote monitoring without power supply. It supports NB-IoT or Sigfox or LoRaWAN for monitoring water leakage, door open/close, motion, temperature and humidity. GPS and bluetooth are optional. In normal application, battery can last for 1-3 years.

Description

Features
  • Support NB-IoT or Sigfox or LoRaWAN
  • Built in accelerometer, temperature and humidity sensors
  • External connector for door/gate sensor, temperature/humidity, flood sensor, on/off switch, proximity sensor
  • Optional GPS and BLE for iBeacon tracking
  • Local status LEDs with transmission and online status indicators
  • 2-way communication
  • Support 2pcs 18650 battery
  • Size: 133mm x 68mm x 50mm
  • DC or battery operation



Supported Sensors
  • Temperature and Humidity Sensor
  • Accelerometer Sensor
  • Vibration Sensor
  • CO Sensor
  • CO2 and VOC Sensor
  • NH3 and H2S Sensor
  • PM2.5 Sensor
  • Door Sensor
  • Noise Sensor
  • Flood Sensor
  • IR Sensor
  • PIR Sensor
  • Ultrasonic Level Sensor
  • Fluid Level Sensor
  • GPS
  • BLE
  • RS232 / RS485



Example Applications
  • Water leakage
  • Door open or close
  • Motion sensor
  • Temperature and humidity
  • Access management
  • Machine Monitoring
  • People Counting
